Basic Info



Model No.: 40-6A

Additional Info



Packaging: 100
Productivity: 10000
Brand: HUAXIN
Place of Origin: CHINA
Supply Ability: 100000PCS
Certificate: CCC
HS Code: 8538900000
Port: SHANGHAI

Product Description

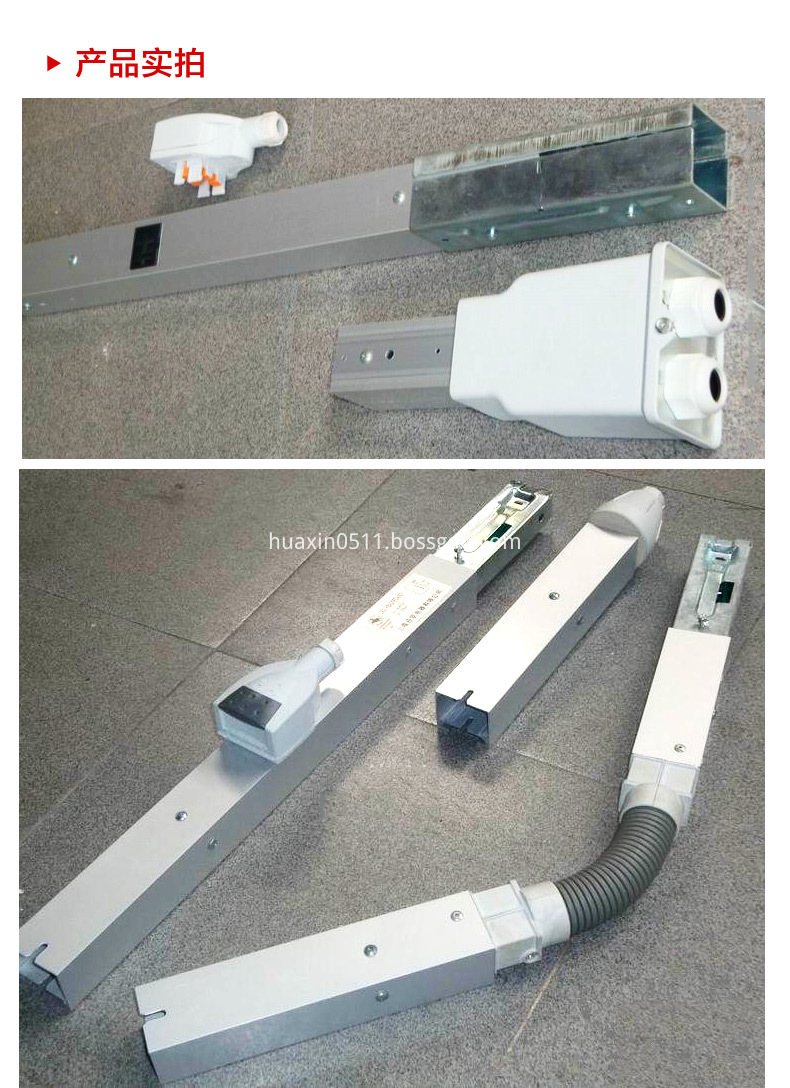

Light Busbar trunking system


Product information
    Light Busbar system XLC is one of most popular products in our market from our factory.40A  lighting busbar is used mainly for overhead installation as it is suitable for all types of industrial lighting busbar making it ideal for use in retail stores, offices and hotels due to its flexibility in creating specific lighting designs. The aluminium-clad trunking is available in 4 and 6 pole configuration with tap off positions every
metre along a standard 3m length. Simple to install, with no requirement for bolting lengths together, the range also
incorporates a flexible corner to accommodate changes in height or direction.
General Construction – Strong extruded aluminium housing with rigid copper conductors
Enclose – Degree of protection IP54 available on request
Conductor Bars – Four and Six copper conductors (Protective earth conductor provided by the housing)
Insulation – Tap off points are marked on the 40A and 6 A lighting busbar with moulded internal polyester supporting the
individual busbars
