Basic Info



Model No.: 250A~5000A

Additional Info



Packaging: 100
Productivity: 10000
Brand: HUAXIN
Place of Origin: CHINA
Supply Ability: 100000PCS
Certificate: CCC
HS Code: 8538900000
Port: SHANGHAI

Product Description

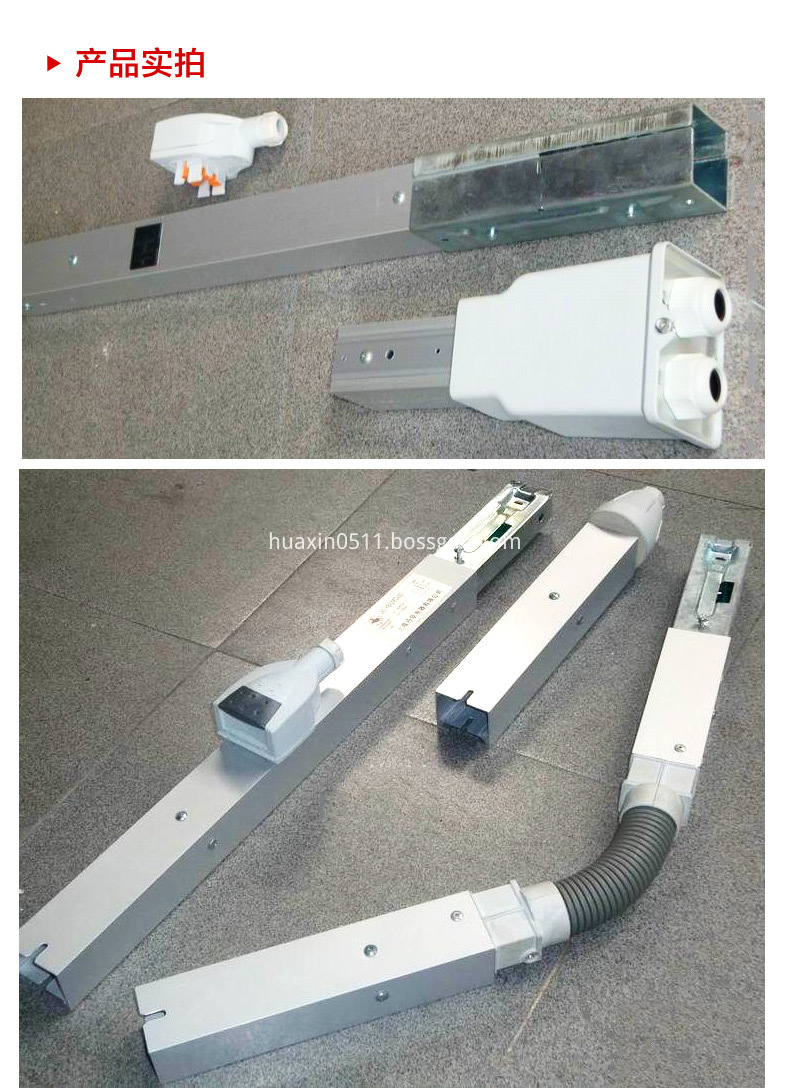

BMC AIR INSULATION Aluminum Copper Busbar

Basic Info
Model NO.: BMC
Rated Frequency: 50/60Hz
Conductor Material: Copper, Aluminum
Busbar Configuration: 3 Phases 4 Wires, 3 Phases 5 Wires
Standard Length: 1m,2m,3m,4m
Rated Current: 250A~5000A
Rated Voltage: 380V/660V
Housing: Aluminum, Steel
Type: Air Insulation
Application: Industrial Factories, Hospitals, Tores, Highrise
Product Description
BMC Air Insulation Aluminum Copper Busway is used in AC 3 phase 4 wires or 3 phases 5 wires distribution system, rated current of the Air Busbar trunking system is 250A~5000A,Rated Voltage Of Air type bus bar 380V/660V
as a scheme of low cost and high efficiency for industrial factories, hospitals, tores, highrise buildings and those environment with high-tech, to achieve good cost performance.

Specification

- Current Rating: 100 A to 5000 A(Copper) or 100A to 4000A(AL)
- Ingress protection: IP54 or IP65
- Insulation curent rating: [upto 1000 A]

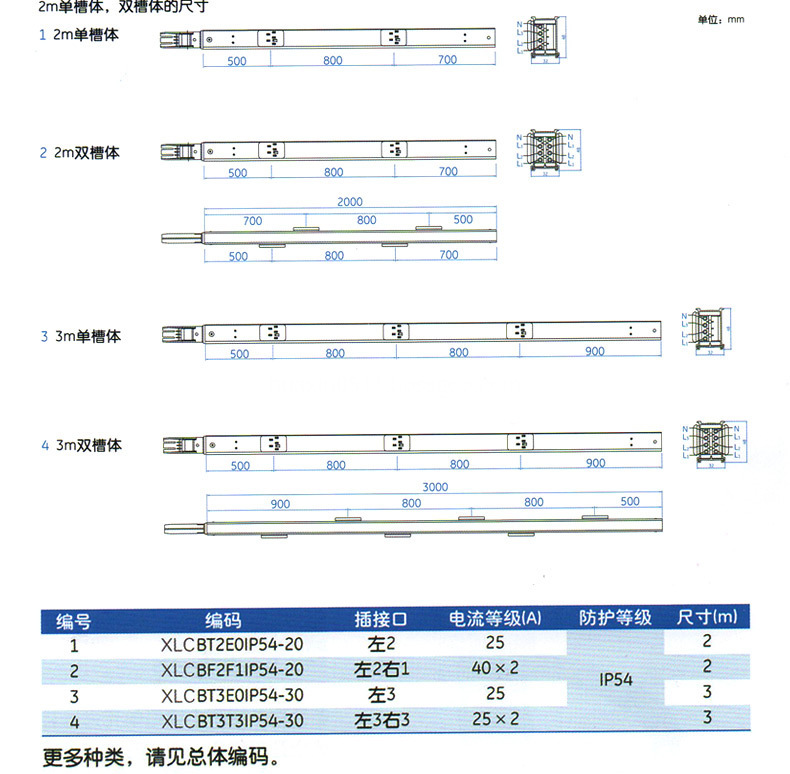

- Standard lengths: 4m/3m/2m/1m
- System Voltage: AC380 /660V
- Conductor material: High conductivity Copper or AL
- Halogen free, fire retardant Class-B-Epoxy insulation
- Tap - off units are suitable for MCCBs or SDFs or MCBs

Application

-Residential apartments
-Business premises and commercial complexes
-Resorts and hotels
-Educational institutions
-Shopping centres
-Assembly lines
-Industries
-Airports
-Hospitals
-Oil & gas platforms
-Electricity generation plants
