Basic Info



Model No.: 400-6300A

Additional Info



Packaging: 1
Productivity: 10000
Brand: HUAXIN
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 100000PCS
Certificate: CCC
HS Code: 8535900090
Port: SHANGHAI

Product Description

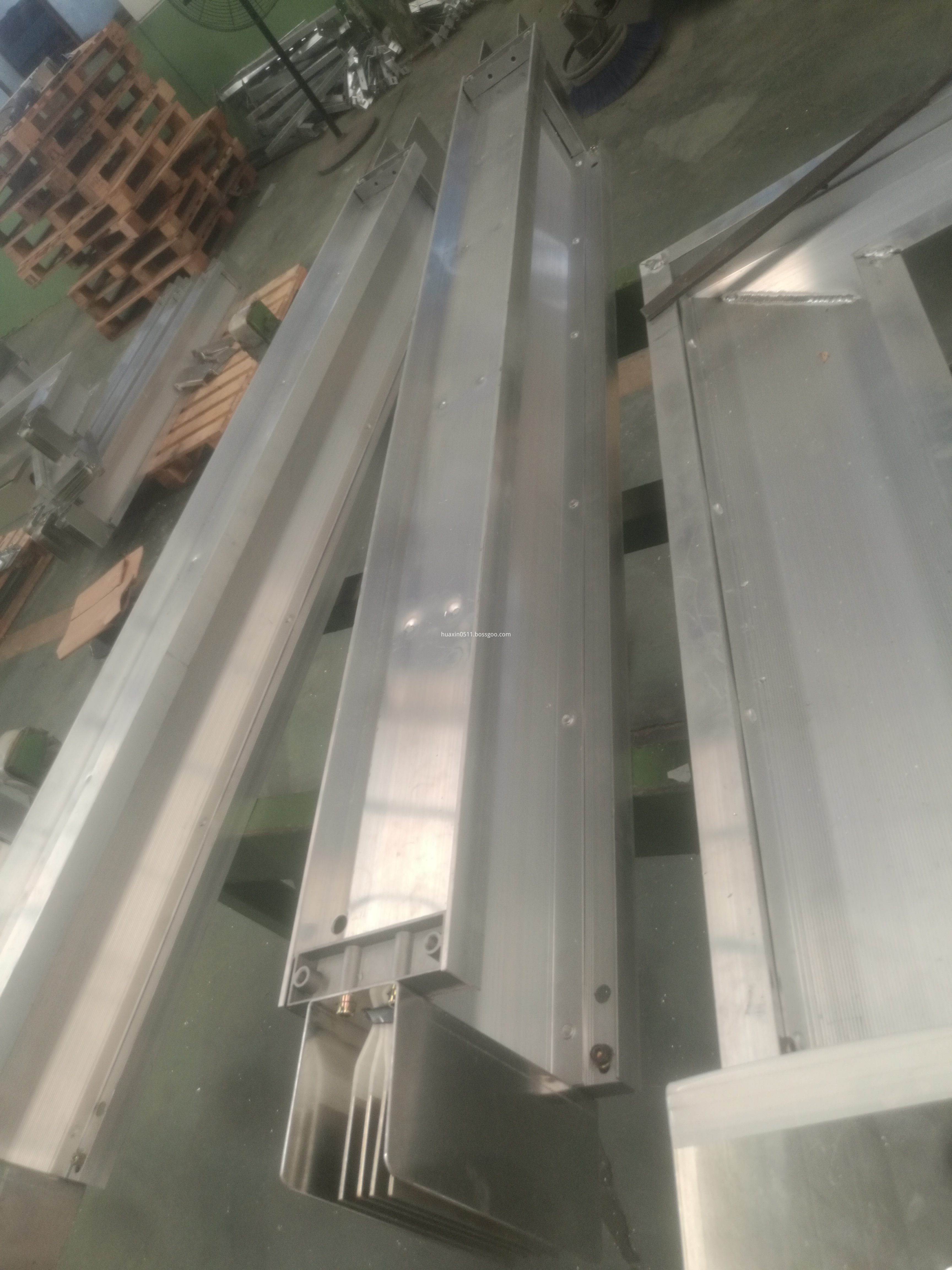

Electrical Equipment Copper and Aluminum Compact Busway
   Huaxin power was committed to supply customers' the most suitable products for the customers since 1996, in which  it was established in Yangzhong.

we are supplying the high quality products including:
crane electrification systme products:
Electrical Equipment Copper and Aluminum Compact Busway,Aluminum shell enclosed copper conductor rail, PVC or aluminum shell single pole insulated copper conductor;
building electrification system compact or air-insulated copper or aluminum busbar trunking system;factory or warehouse illumination: 5 poles or 7 poles PVC or aluminum shell conductor rail
If you are searching these products, please feel free to contact us for a remarkable offer!

Product Description
Advantages

1. Safety - By reducing chance of harm to personnel.
2. Reliability - By reducing chances of flashover and short circuits that cause damage to equipment and costly outages.  A practical example would be the reduction in fault events as a result of wildlife crossing the phases.
3. Protection - Of conductors in industrial facilities with high amounts of trace materials like oils, sawdust, moisture, and caustic materials.
4. Reduced Impedance - From surface corrosion and defects.

Specification
 -Current Rating: 400 A to 6300 A(CU) or 100A to 4000A(AL)
 -Ingress protection of IP54 or IP65
-Insulation curent rating: [upto 1000 A]
-Standard lengths of 4m/3m/2m/1m
-System Voltage: AC380 /690V
-Conductor material: High conductivity Cu or AL
-Halogen free, fire retardant Class-B-Epoxy insulation

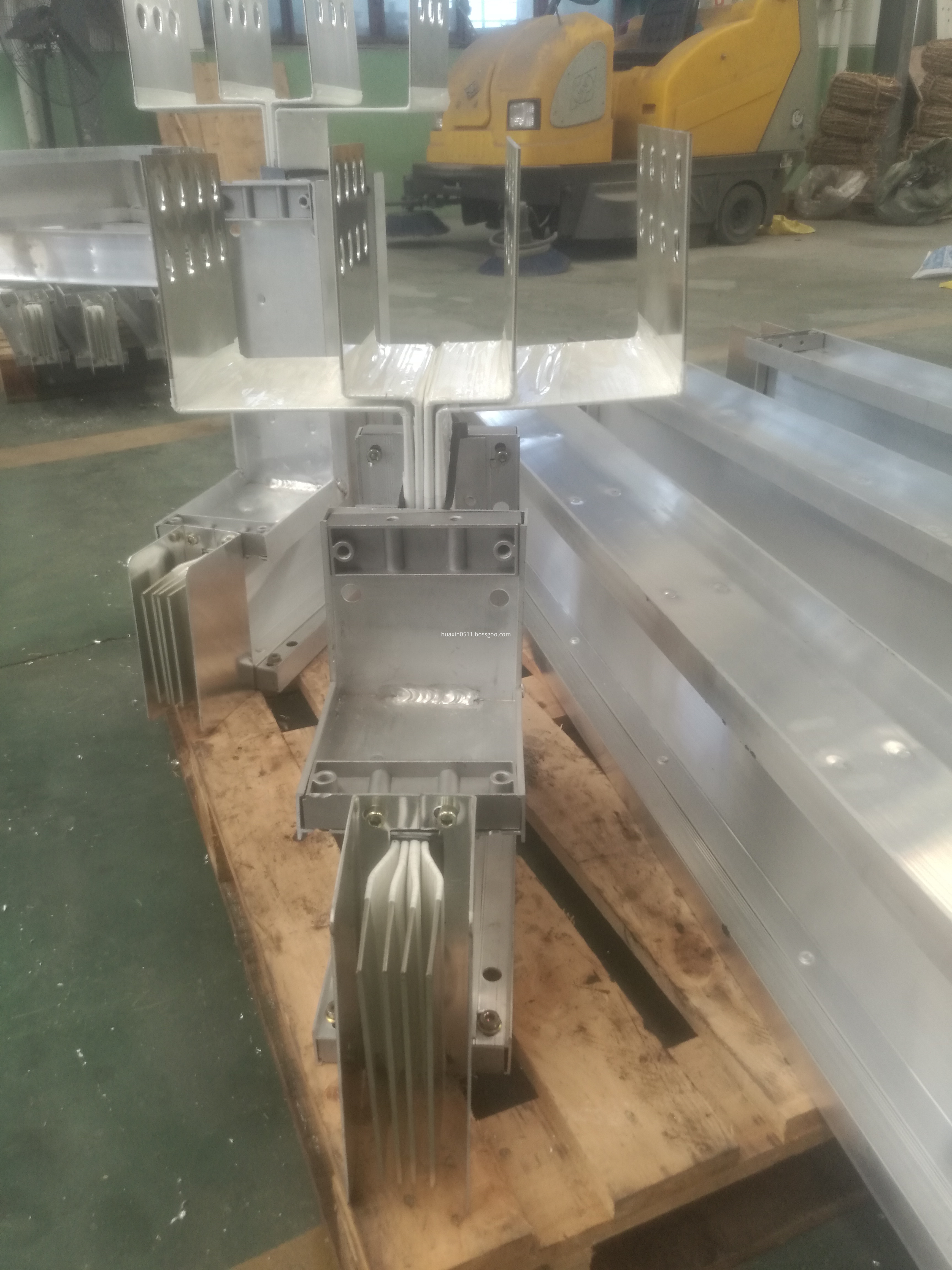

Components

Straight feeder
Feeder Bustrunking
Plug-in Busbar trunking
Joint block
Horizontal Elbow
Horizontal Offset [Z] Elbow
Vertical Elbow
Vertical Offset [Z] Elbow
Vertical Tee Section
Standard Flange End
Flange End Box cum Termination Detail
MCCB Plug-in Boxes

Rated current (A) Earthing bar resistance (10-6Ω/m)

 Application:

Business premises and commercial complexes
Resorts and hotels
Educational institutions
Shopping centres
Assembly lines
Industries
Airports
Hospitals
Oil & gas platforms
