Product Description

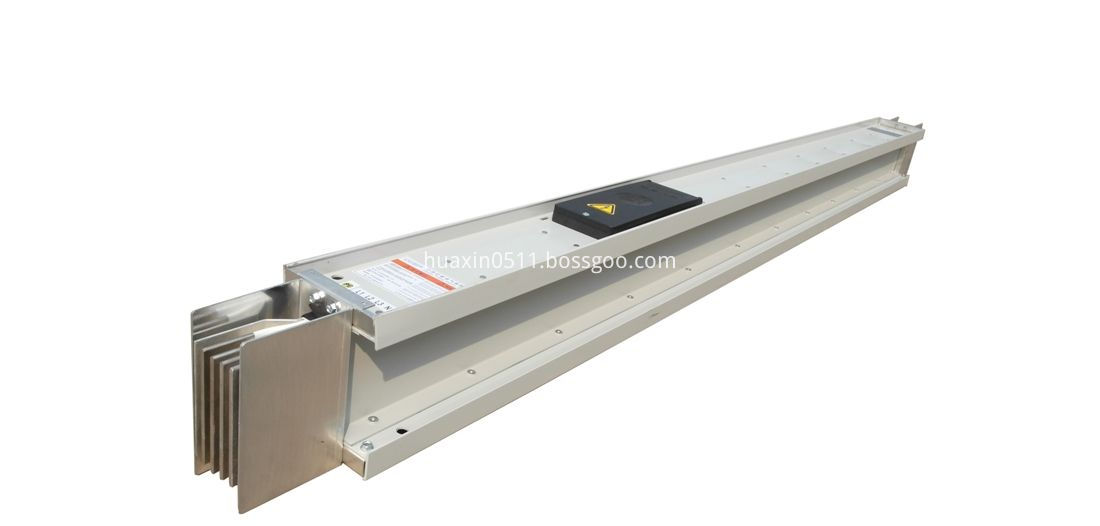

Aluminum Shell Compact Busway
Product Description
Product instroduction:
Busway System for electrical distribution is an alternative to cumbersome conventional cable distribution system.
Decentralized distribution is the main highlight of this distribution system.
Aluminum Shell Compact Busway eliminates separate requirement of distribution & panel boards.
Loads can be fed from Plug-in Boxes unlike cables where each floor /machine is to be fed separately from the main switchboard.
Can be installed quickly with minimum technical expertise and have good asthetics.
Any section of bustrunking can be removed without distrurbing adjacent sections.
System is maintenance free and adds elegance to the surrounding.
Compact busway main feature:
low reactance, low impedance, low voltage drop and low power loss.
Due to elimination of air there is no rise of chimney effect, so no fire barriers are required.
Due to compactness system can be installed in lesser space.
Automatic polarity is maintained during installation.
System can be mounted edgewise OR flat wise, horizontally or vertically in any direction with all kinds of bends and tees etc.
Flexible and safe distribution system leads to easy and fast installation.
System is completely re-usable.
· Model NO.: CMC
· Housing: Aluminum or Steel
· Rated Voltatge: 380V
· Rated Frequency: 50Hz
· Busbar Configuration: 3p+N+PE, 3p, 3p+N
· Insulation Resistance: >=20
· Specification: CCC, CE, ISO9001
· HS Code: 85444929
· Material: Copper Aluminum
· Rated Current: 400A-6000A
· Insulation Voltage: 660V
· Degree of Protection: IP43 IP54
· Rated Impulse Withstand Voltage: 3750 V
