Basic Info



Model No.: 100A

Additional Info



Packaging: 1
Productivity: 1000
Brand: HUAXIN
Place of Origin: CHINA
Supply Ability: 10000
Certificate: 9000
HS Code: 8537109090
Port: SHANGHAI

Product Description

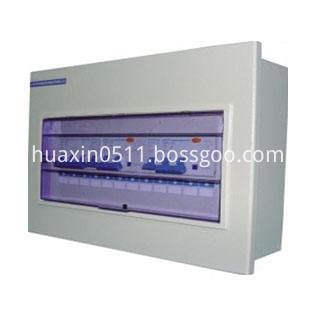

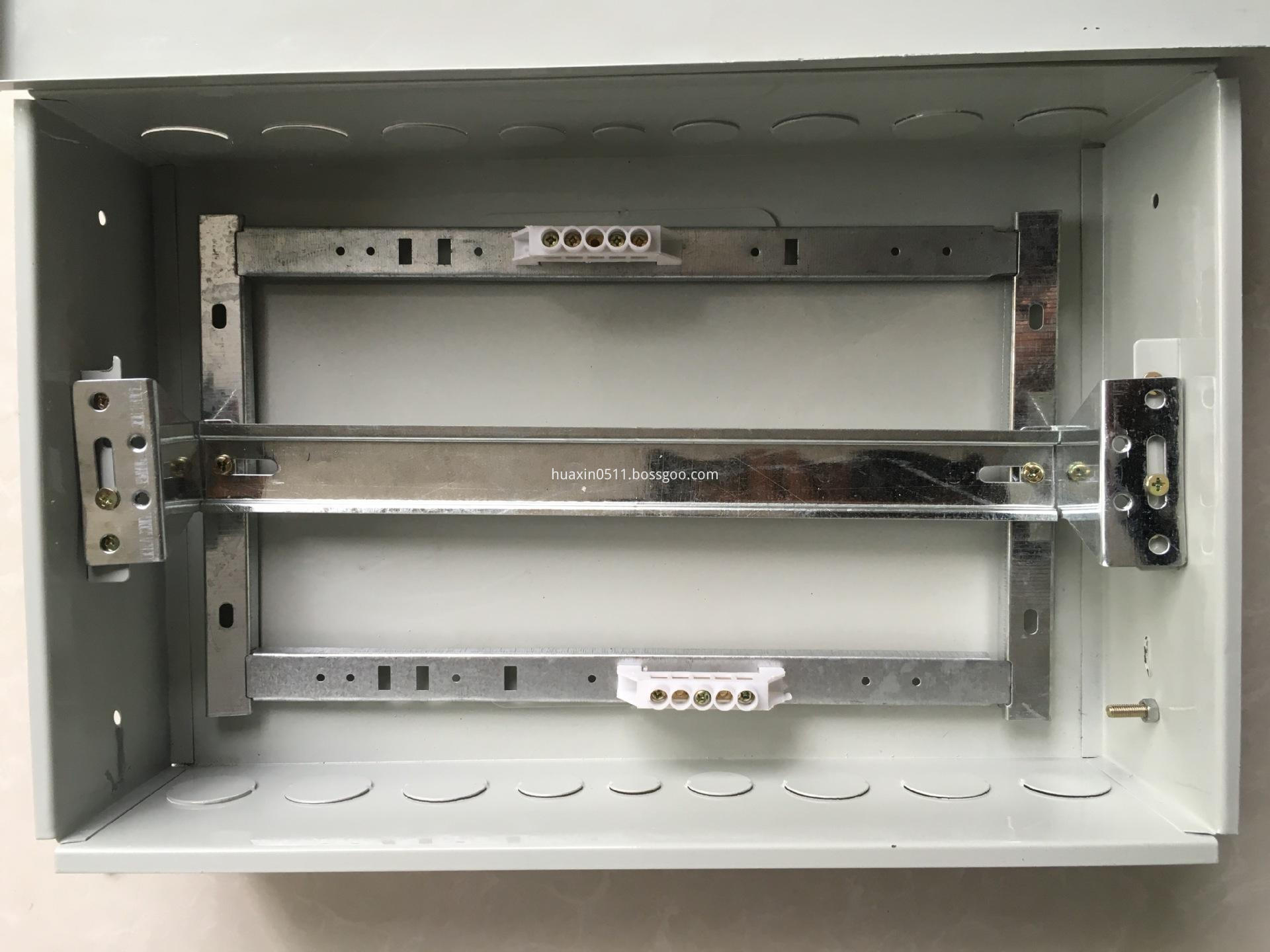

Terminal Distribution Board PZ30
Product Introduction
PZ30 power distribution boards, is a modular terminal combination of electrical appliances, widely used in power distribution stations,factories, industrial and mining enterprises, civil construction,AC 50HZ ,rated working voltage 380/220V, rated working current to100A low voltage power distribution lighting system.
according with GB7251.3 "low voltage switchgear and controlgear assemblies "standard requirements.

Terminal Distribution Board PZ30 of Application Scope
Major applications: widely used in factories, industrial and mining enterprises, large power plants, high-rise buildings, hotels,residential Lighting distribution, etc.

PZ30 home use distribution box of Technical Data

Rated voltage: 220/380VAC; rated insulation voltage: 400VAC 3~;
Rated frequency: 50Hz;
Rated current: 100A;
Bus: 10~250A, rated peak withstand current: 6KA; rated short-time withstand current Icw:4.5KA;
Install the maximum return number: 6, 9, 12, 18.
Protection level: IP30
